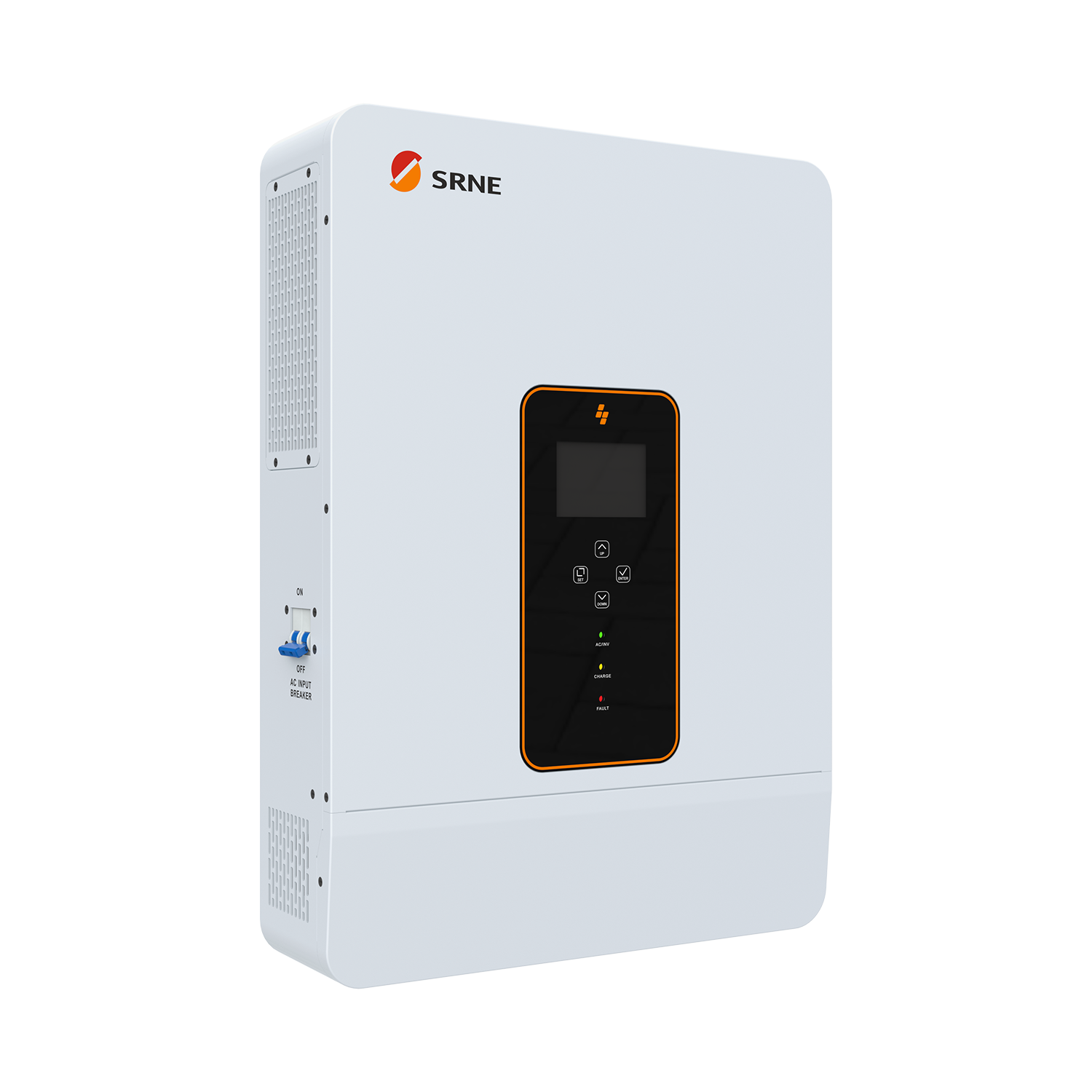

Front

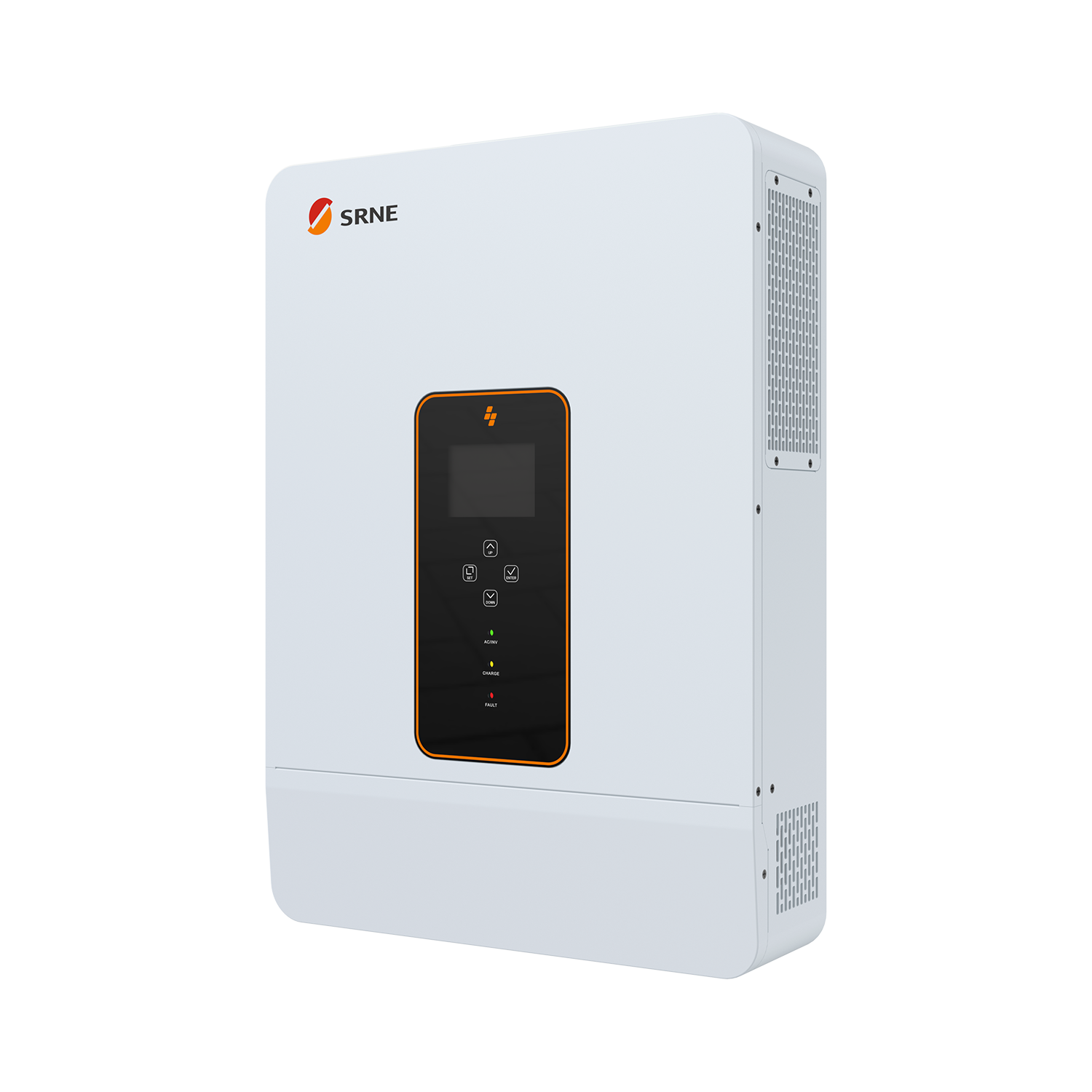

side

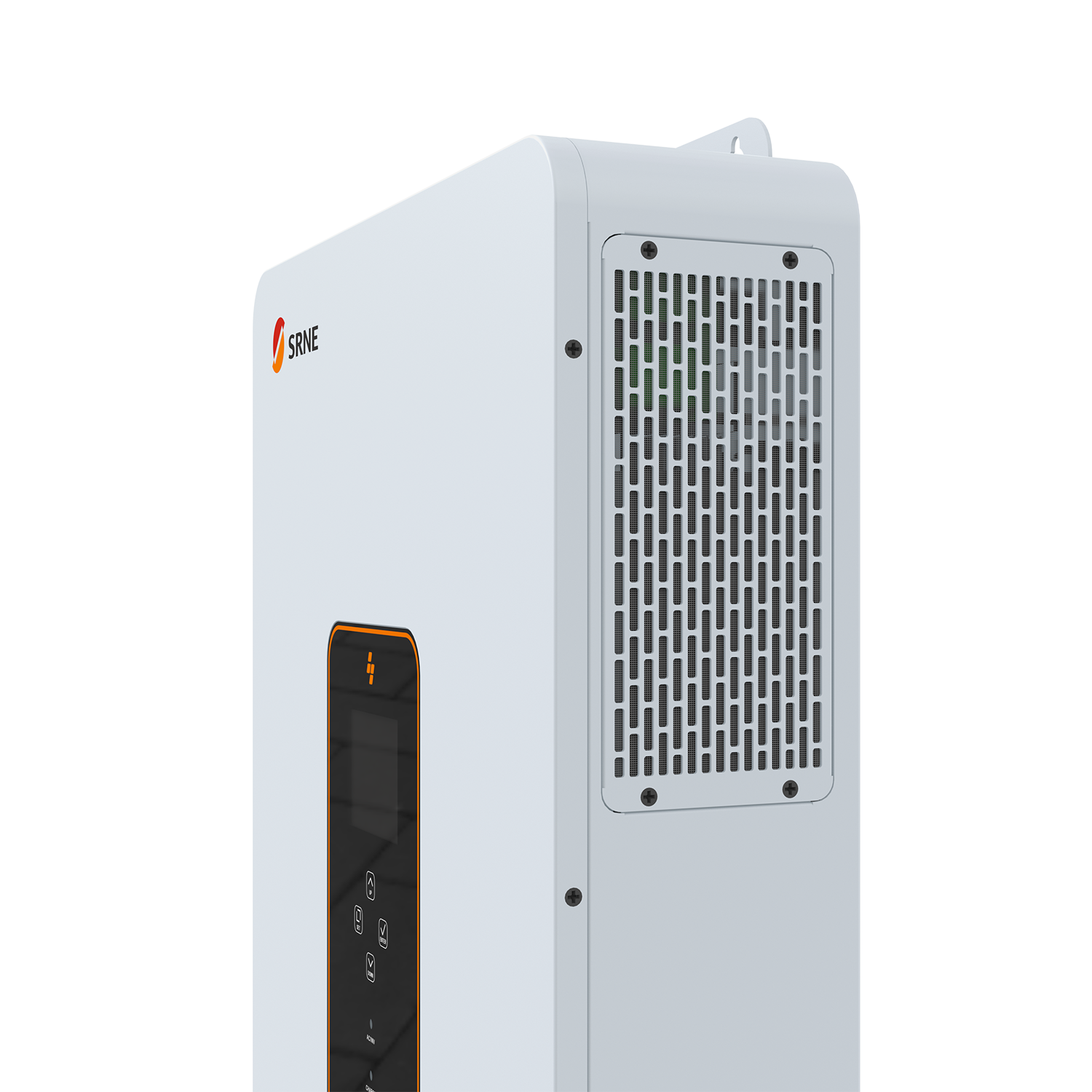

side1
sie2
side1
side0
Alternate Text

10KW 48V HighVoltage Inverter Parallel

10KW High Voltage Off-Grid Hybrid Solar Inverter, Lithium Battery/GEL/AGM Compatible

Model: AFP48100S200-H; 48V Battery Input; 200A MPPT Charging Current; 500Vdc + 500Vdc Open Circuit Voltage

  • Alternate Text

    ● Rated Output Power: 10000W

  • Alternate Text

    ● Rated Battery Voltage: 48VDC

  • Alternate Text

    ● Max.MPPT Charging Current: 200A

  • Alternate Text

    ● Supports up to 6 devices connected in parallel

Download User Manauel Buy Now



All In One Solar Charge Inverter

MODELASP48100S200-H
INVERTER OUTPUT
Rated Output Power10000W
Max.Peak Power15000VA
Rated Output Voltage230Vac(L/N/PE single phase)
Load Capacity of Motors
6HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch time10ms
Parallel Capacity1-6 units

BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery Voltage48Vdc
Voltage Range40-60Vdc
Max.MPPT Charging Current200A
Max. Mains/Generator Charging Current120A
Max.Hybrid Charging Current200A

PV INPUT
Num. of MPPT Trackers2
Max. PV Array Power5500W + 5500W
Max. Input Current22A + 22A
Max.Voltage of Open Circuit
500Vdc + 500Vdc
MPPT Voltage Range125-425Vdc
MAINS/GENERGATOR INPUT
Input Voltage Range90-275Vac
Frequency Range50Hz/60Hz
Bypass Overload Current63A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max.Battery Inverter Efficiency92%
GENERAL
Dimensions620*445*130mm
Weight27kg
Protection Degree
IP20, Indoor only
Operating Temperature Range-10℃ ~ 55℃
Noise< 60dB
Cooling MethodInternal Fan
Warranty2 years
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry Contact
External Modules (Optinal)
Wifi/GPRS
