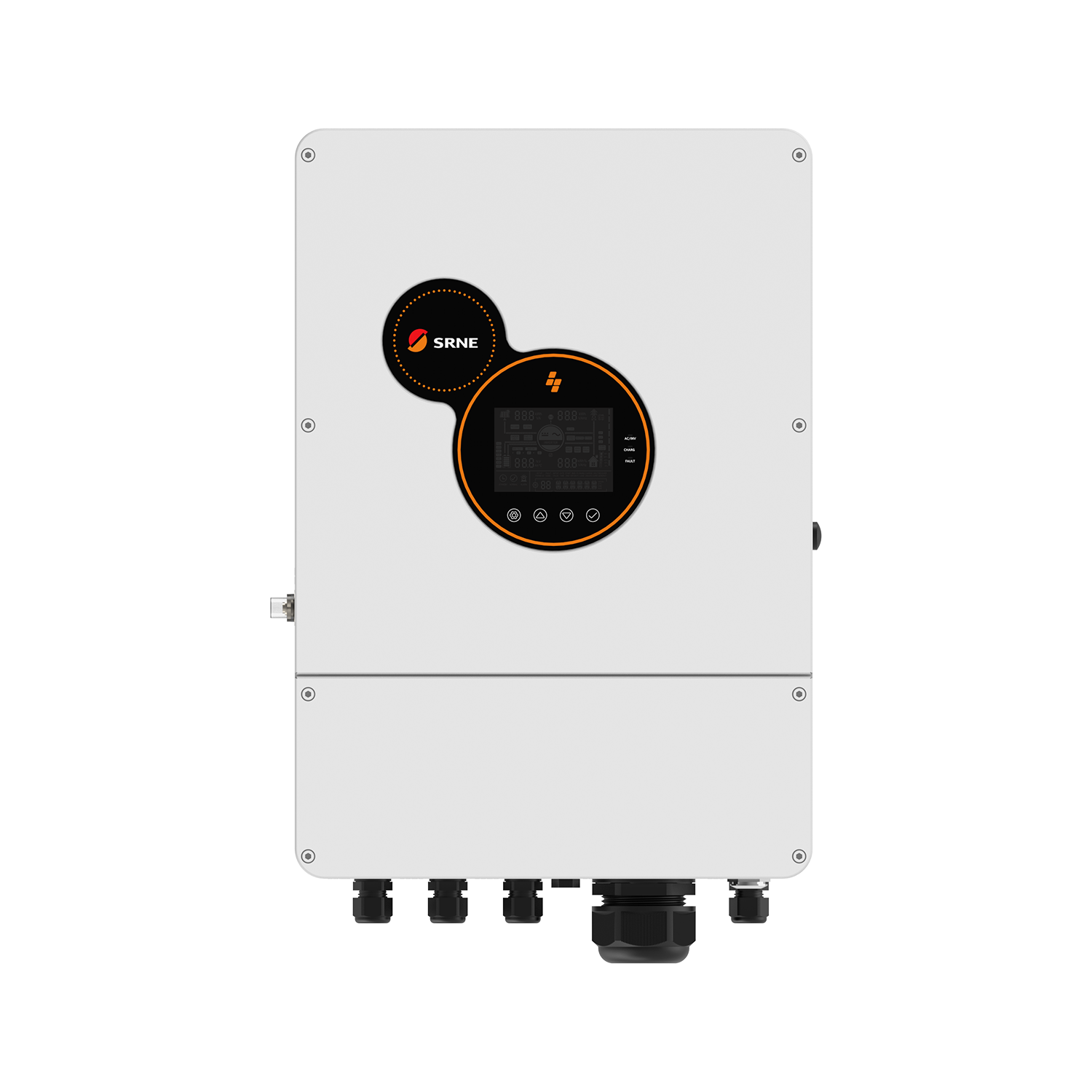

Front
Side
side1
side3

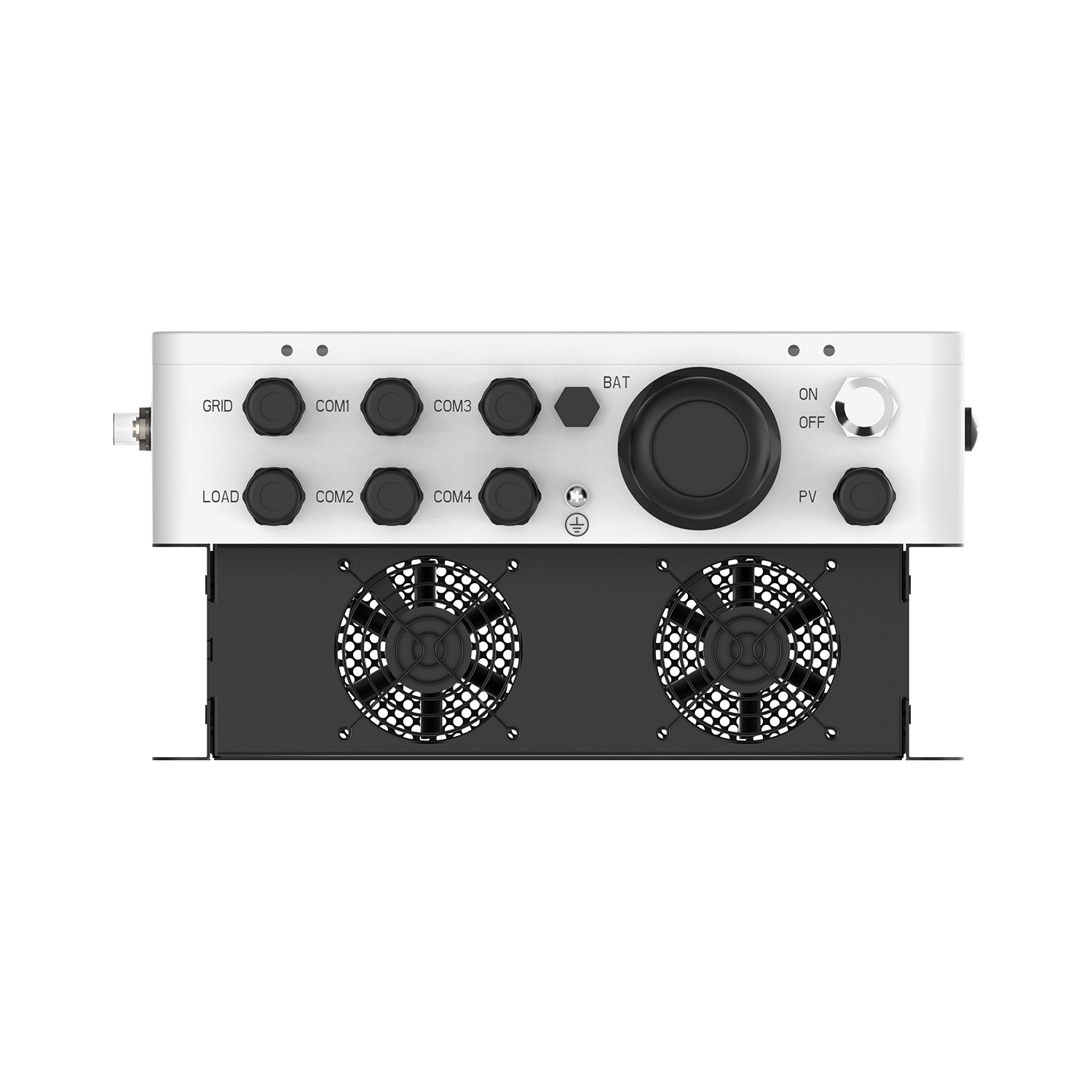

bottom
Alternate Text

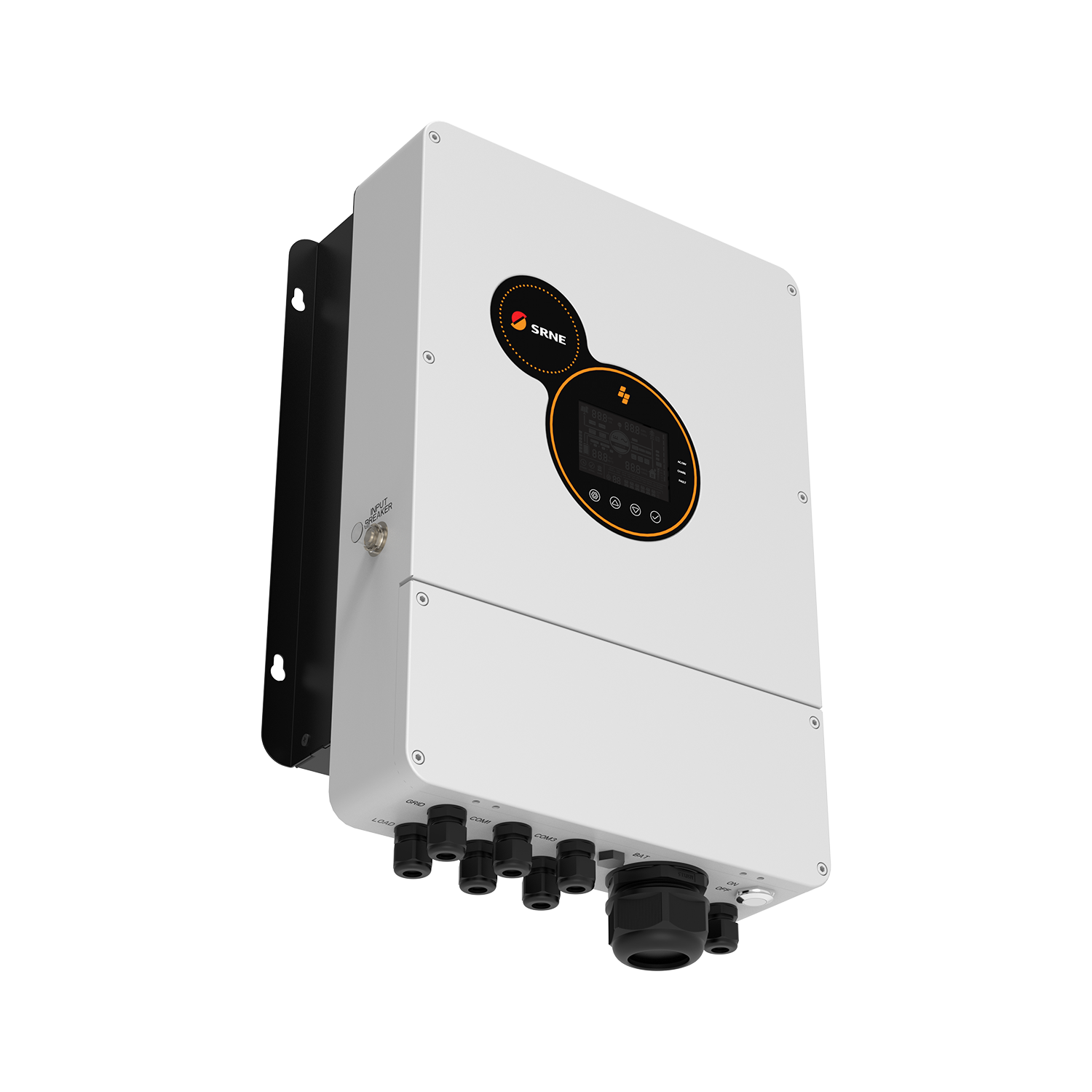

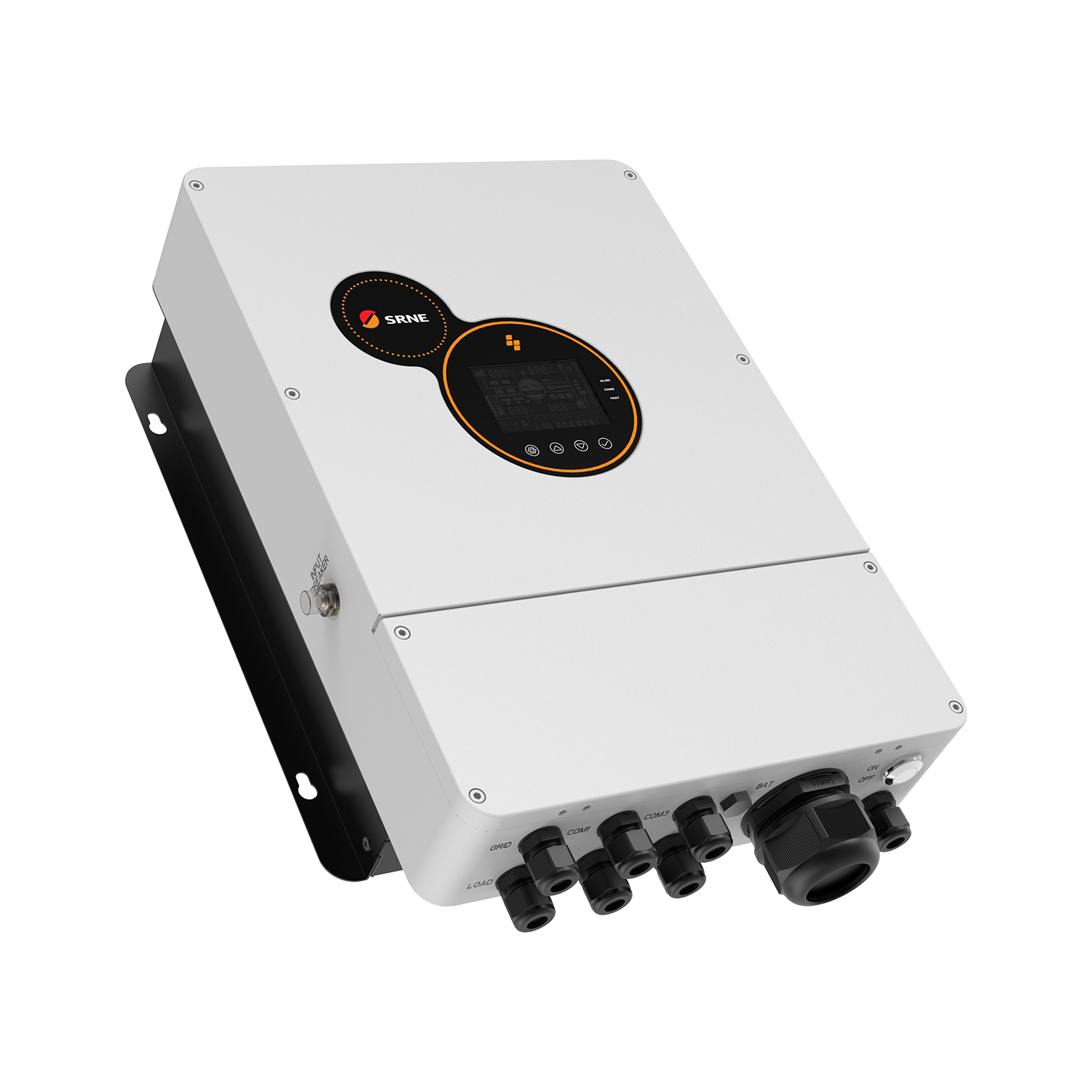

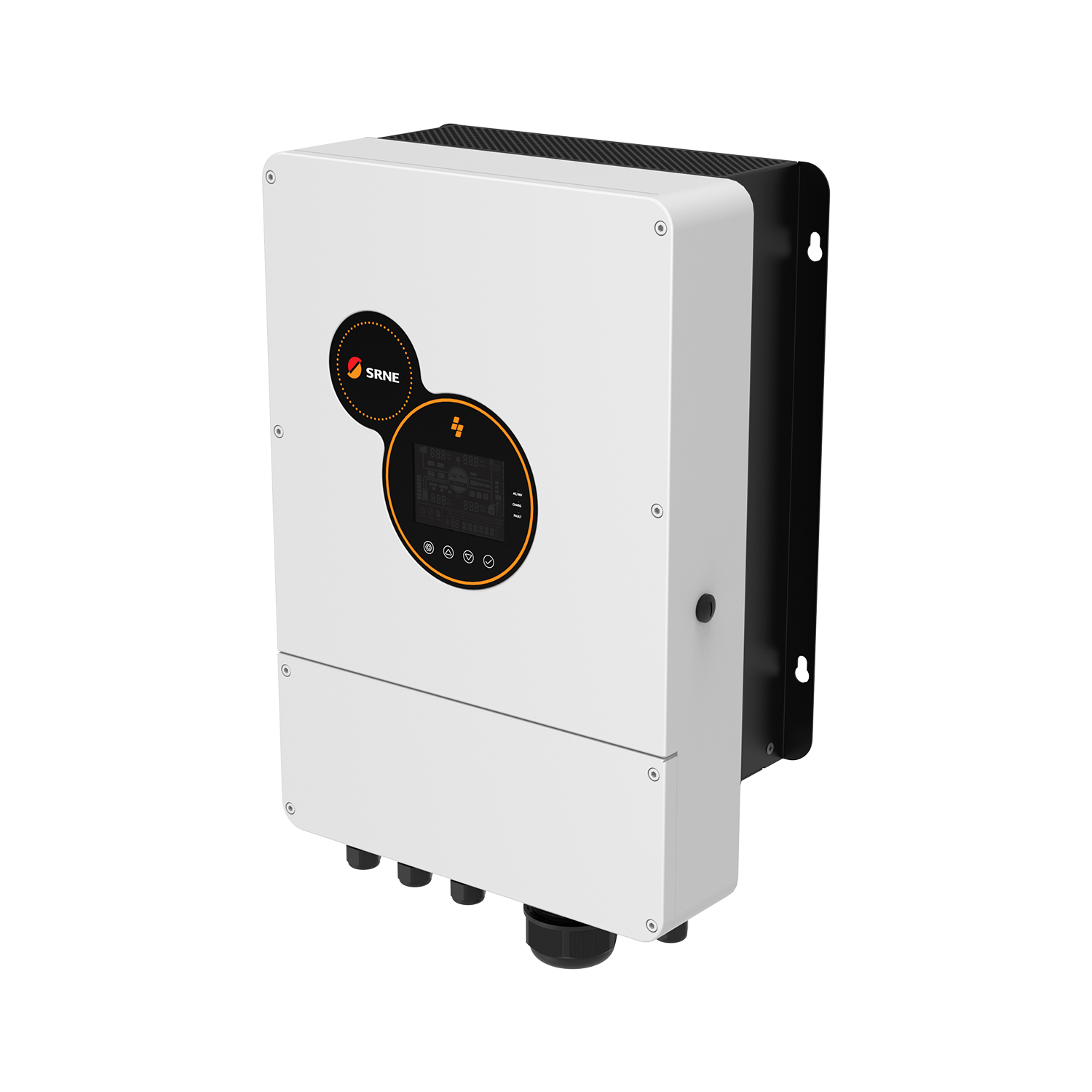

6KW 48V Grid-Tied Inverter Parallel

6KW Grid-Tied Solar Inverter, Lithium Battery/GEL/AGM Compatible

Model: HESP4860S100-H; 48V Battery Input; 100A MPPT Charging Current; 500Vdc+500Vdc Open Circuit Voltage

  • Alternate Text

    ● Rated Output Power: 6000W

  • Alternate Text

    ● Rated Battery Voltage: 48VDC

  • Alternate Text

    ● Supports AC-coupling

  • Alternate Text

    ● Supports up to 6 devices connected in parallel

Download User Manauel Buy Now



All In One Solar Charge Inverter

MODELHESP4860S100-H
INVERTER OUTPUT
Rated Output Power6000W
Max.Peak Power12000VA
Rated Output Voltage230Vac(L/N/PE single phase)
Load Capacity of Motors
4HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch time10ms
Parallel Capacity1-6
AC OUTPUT(GRID)
Rated Output Power6000W
Max. Output Power12000VA
Rated Output Current26A
Max.Output Current
28.6A
Power Factor0.8 leading/0.8 lagging
THD<3%

BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery Voltage48Vdc
Voltage Range40-60Vdc
Max. Solar Charging Current100A
Max. Grid Charging Current60A
Max. Generator Charging Current60A
Max.Hybrid Charging Current100A

PV INPUT
Num. of MPPT Trackers2
Max. PV Array Power4500W+4500W
Max. Input Current16/16A
Max. Short Circuit Current27A/27A
Max.Voltage of Open Circuit
500Vdc+500Vdc
MPPT Voltage Range120-450Vdc
GRID/GENERGATOR INPUT
Input Voltage RangeUPS:170-280Vac  APL:90-280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current40A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max.Battery Inverter Efficiency92%
GENERAL
Dimensions556*345*182mm
Weight20kg
Protection Degree
IP65
Operating Temperature Range-25℃ ~ 60℃
Noise< 60dB
Cooling MethodFan Cooling
Warranty5 years
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry Contact
External Modules (Optinal)
Wifi/GPRS
