460W Half Cut Mono Panel

Product Category

Solar Panels

front
side
side2
Alternate Text

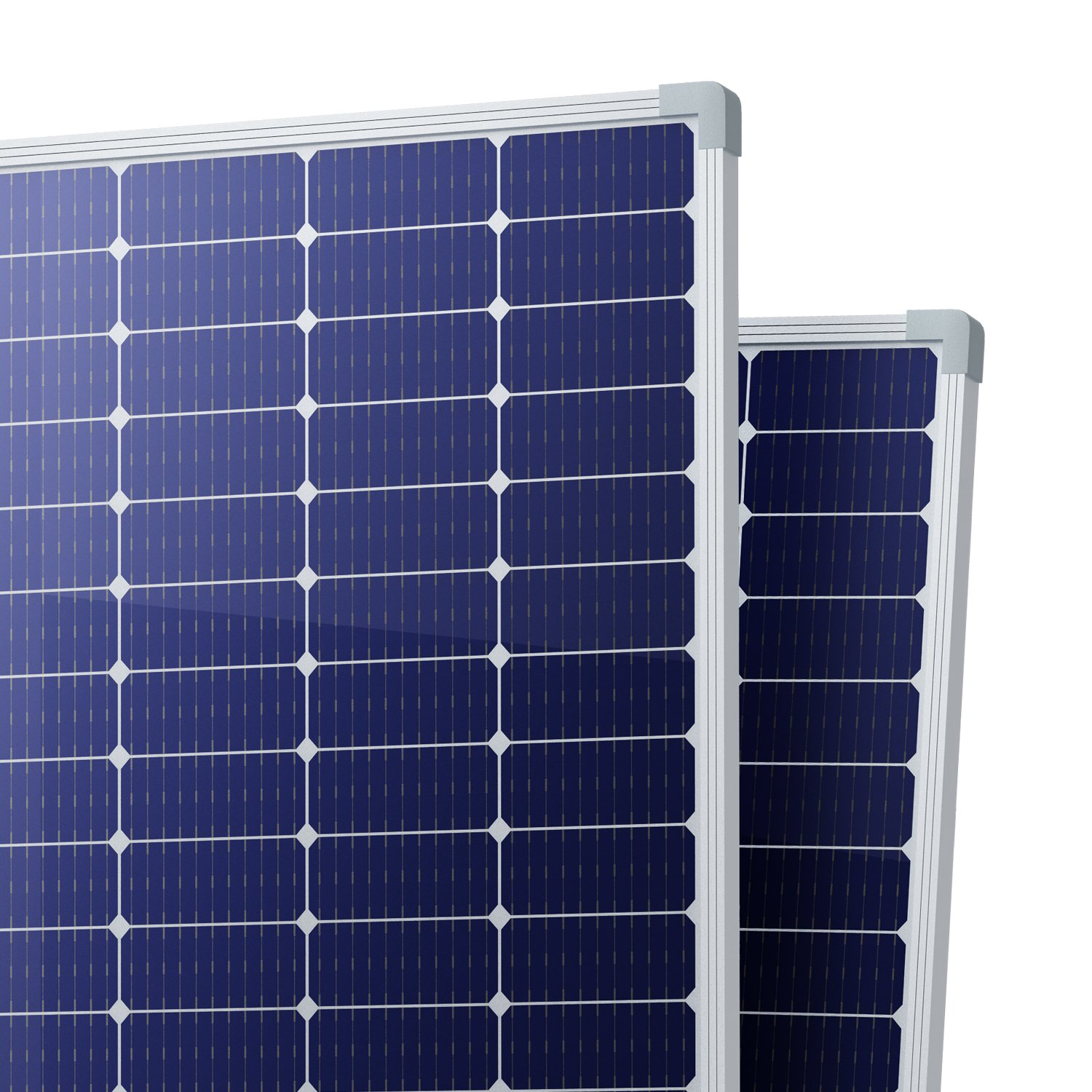

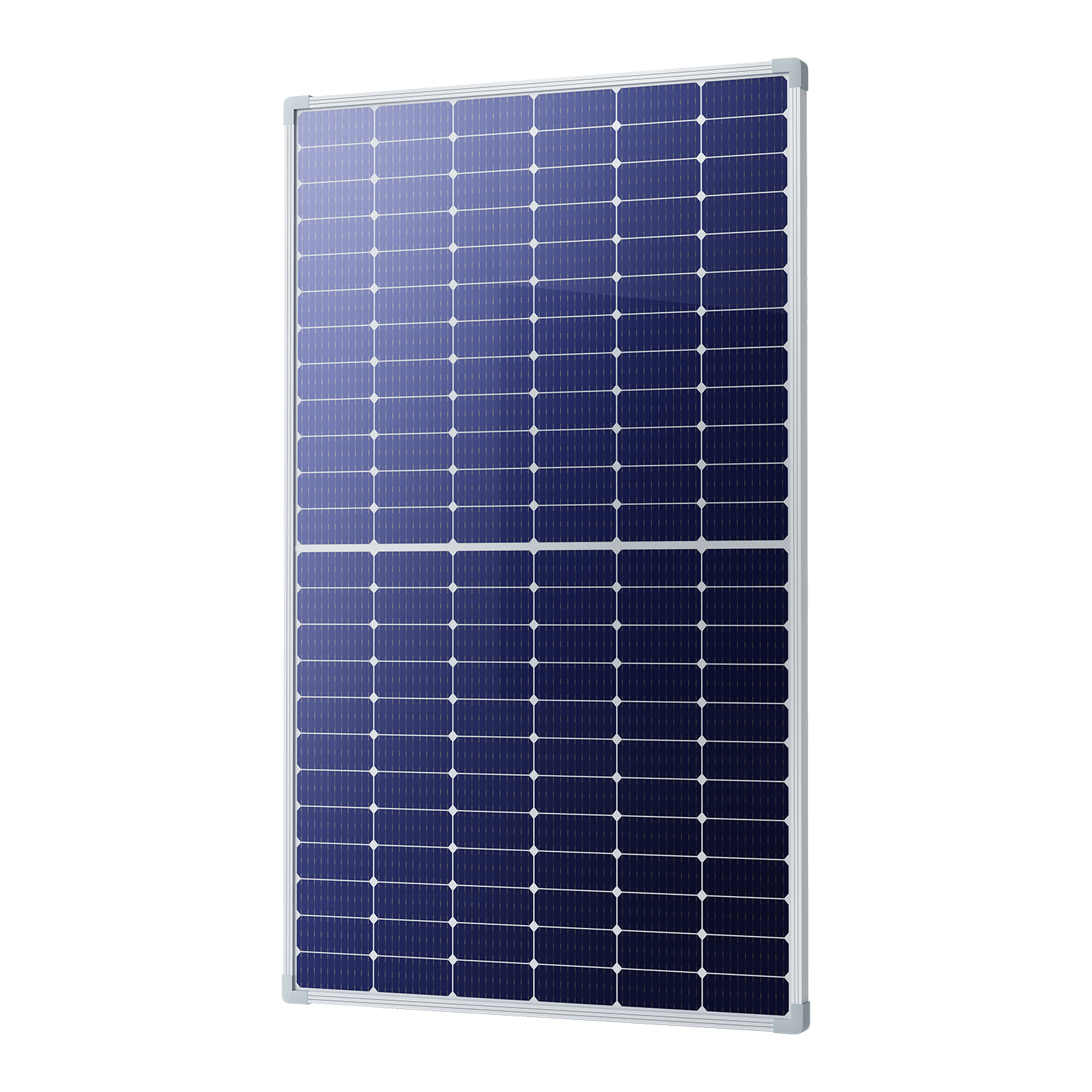

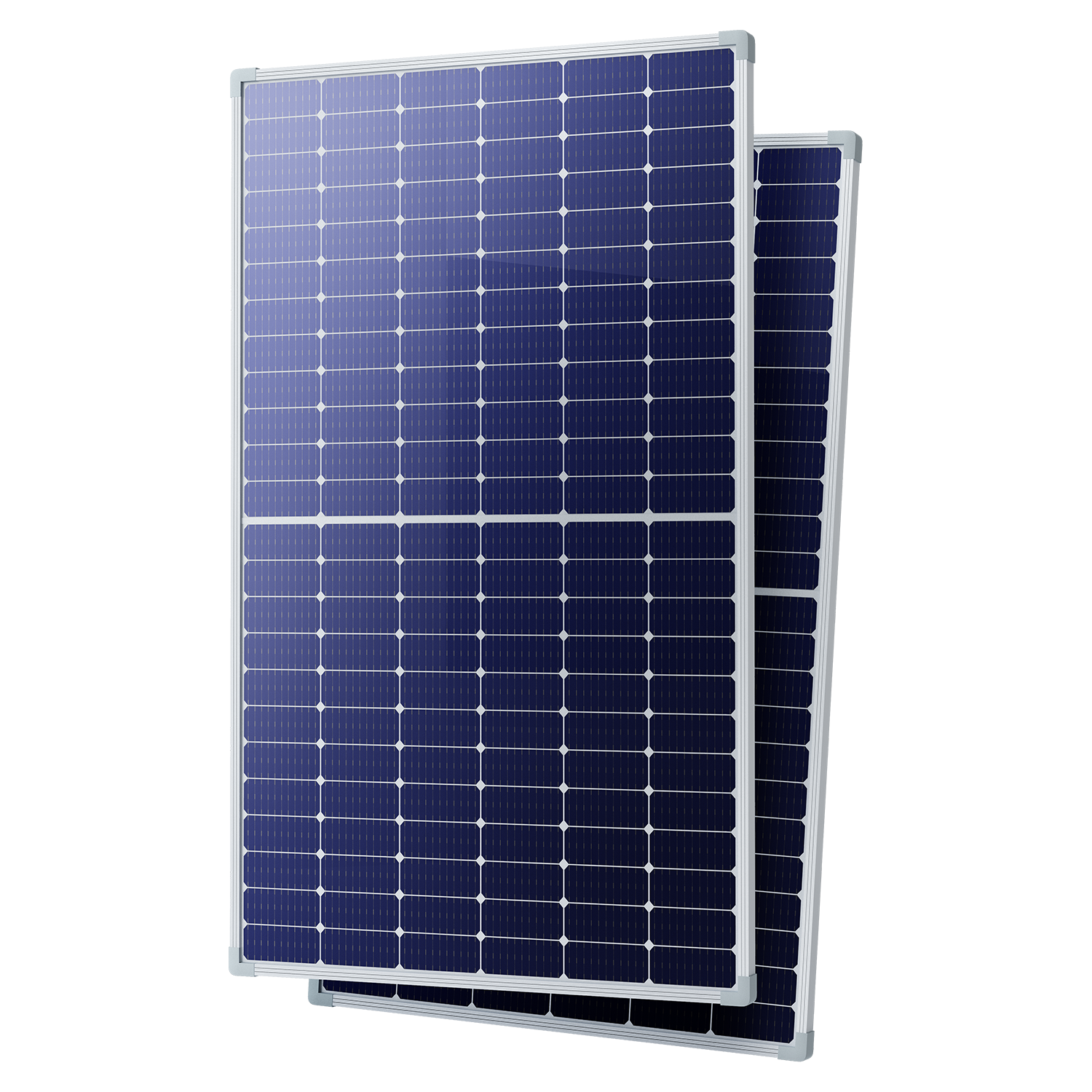

460W Half Cut Mono Panel

460W Half Cut Mono Solar Panel

Model: SSPV460P-12M;

  • Alternate Text

    ● 12 years warranty for material and technology.

  • Alternate Text

    ● 25 year linear power output warranty.

  • Alternate Text

    ● Certificates: IEC61215, IEC61730

  • Alternate Text

    ● Certificates: ISO9001:2015; ISO14001:2015; ISO45001:2018



460W HALF CUT MONO SOLAR PANEL

MODELSSPV360P-60M
SPECIFICATIONS
Weight23kg
Dimensions1909 * 1134 * 30 mm
Cell Amount60 * 2 pcs
Maximum System Voltage1500V
Junction BoxIP68
FrameAlluminum Alloy
Cable
4mm^2/300m
Connector
MC4 Compatible
Application LevelClass A

ELECTRICAL PARAMETERS AT STC
Maximum Power(Pmax/W)460W
Open Circuit Voltage (Voc/V)41.55V
Short Circuit Current (Isc/A)14.05A
Maximum Power Voltage (Vmp/V)35.06V
Maximum Power Current (Imp/A)13.13A
Module Efficiency (%)21.2%
*Under Standard Test Conditions (STC) of irradiance of 1000w/m2, spectrum AM 1.5 and cell temperature of 25℃.
TEMPERATURE CHARACTERISTICS
NOCT45±2℃
Temp Coefficient of Isc+0.046% / ℃
Temp Coefficent of Voc-0.275% / ℃
Temp Coefficient of Pmax-0.350% / ℃

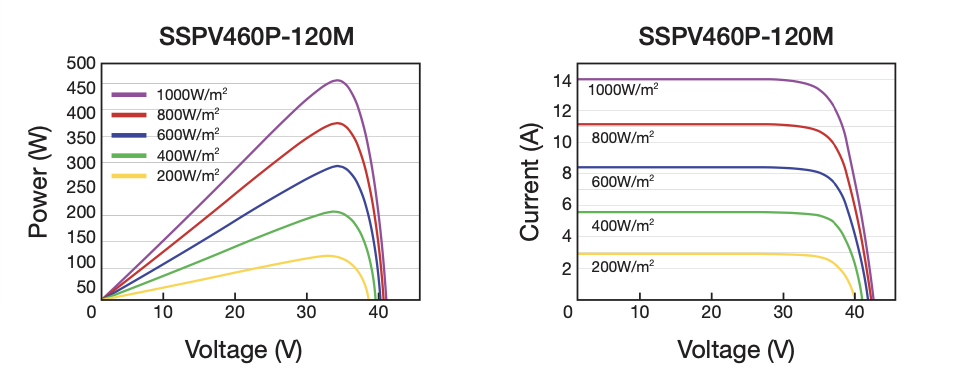

CHARACTERISTICS
