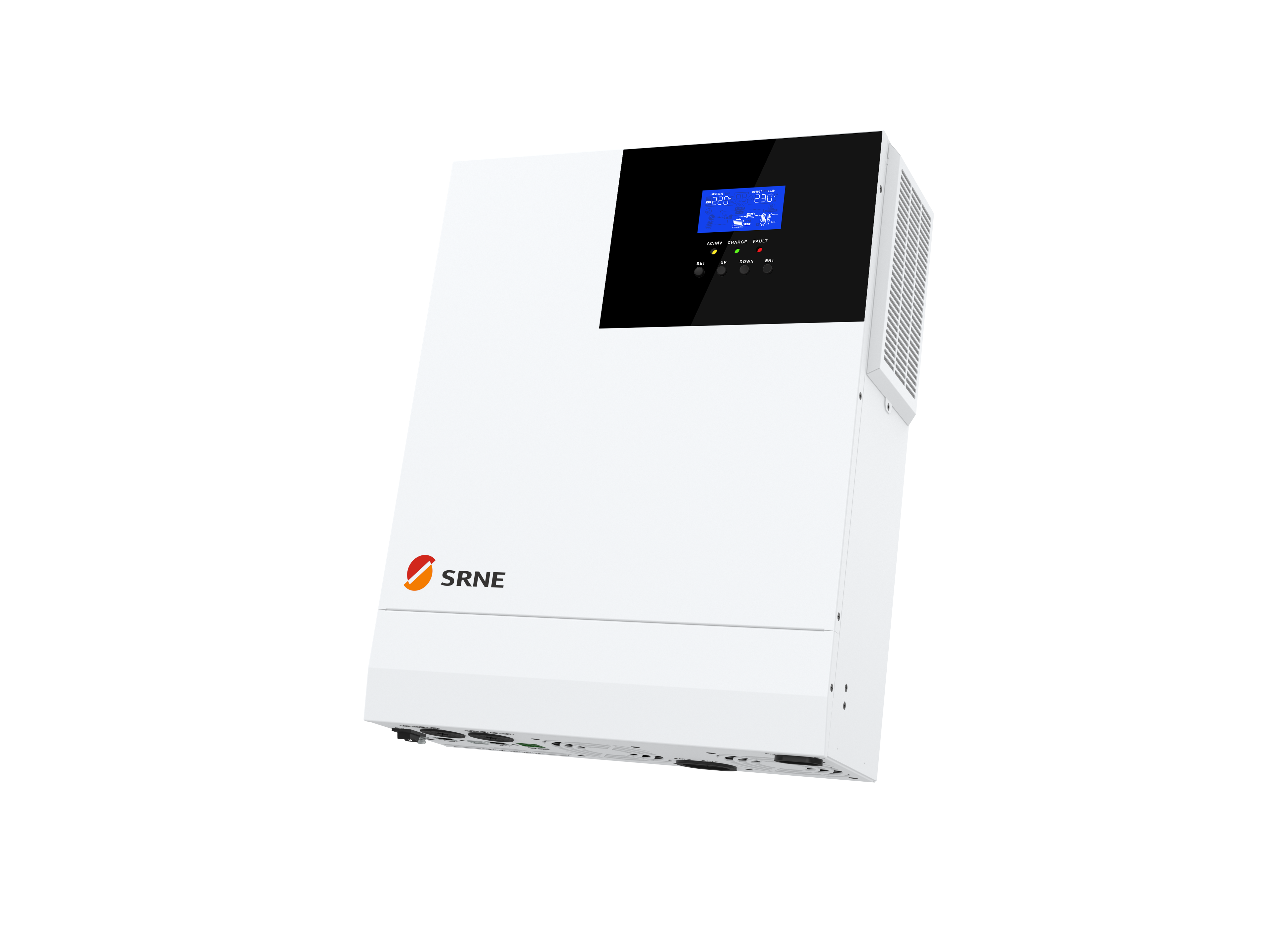

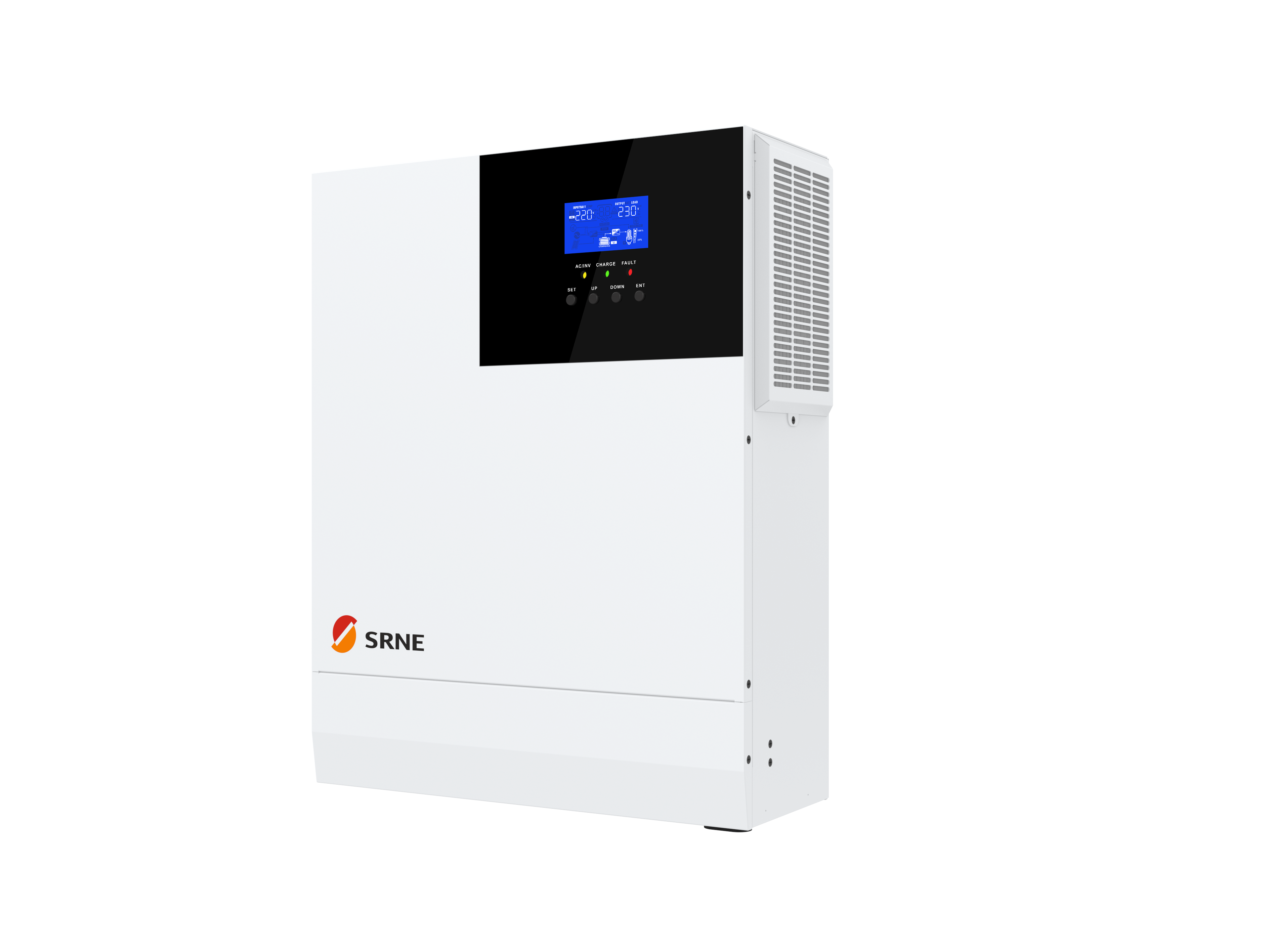

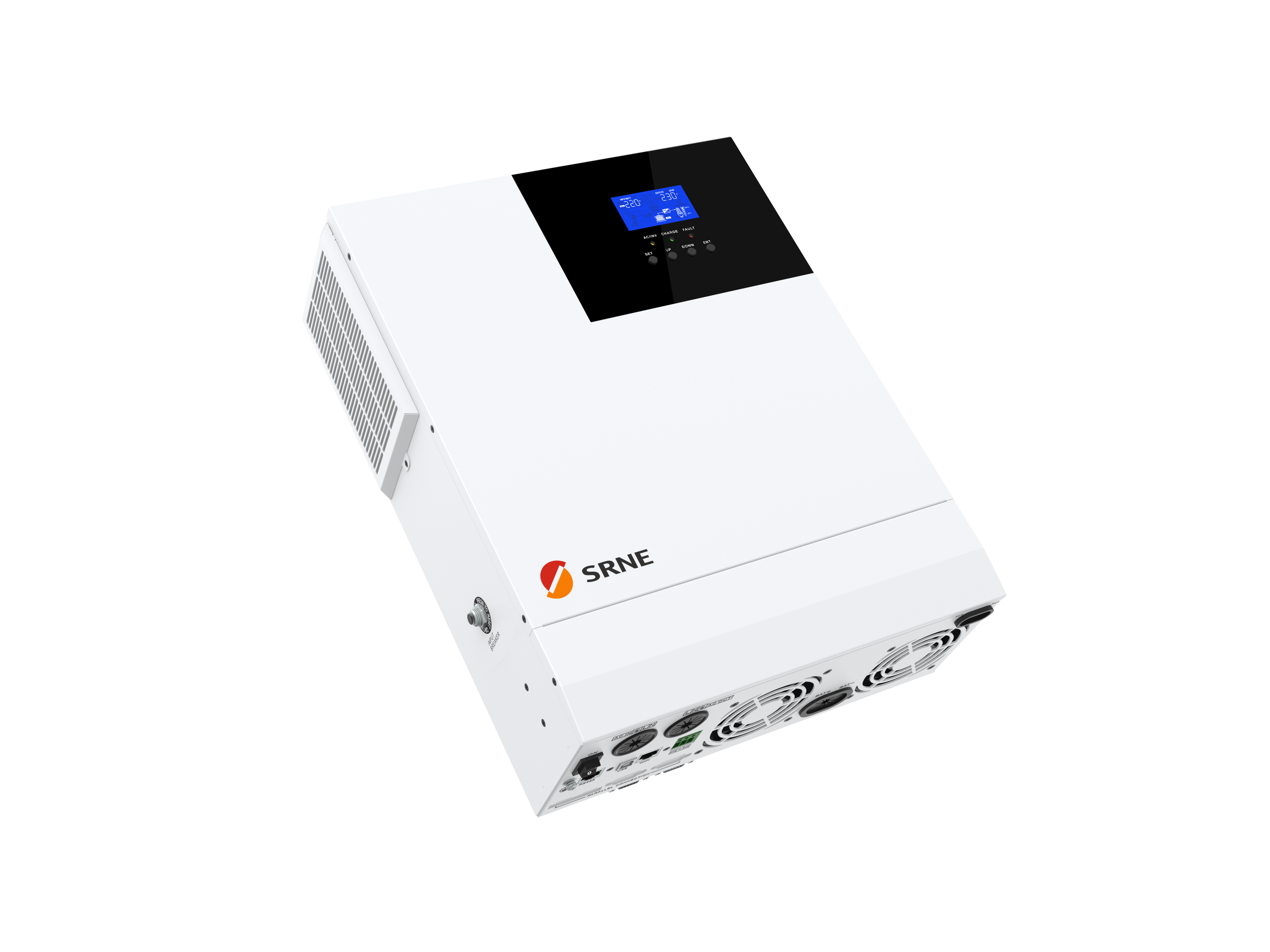

Front
Side1
Side3

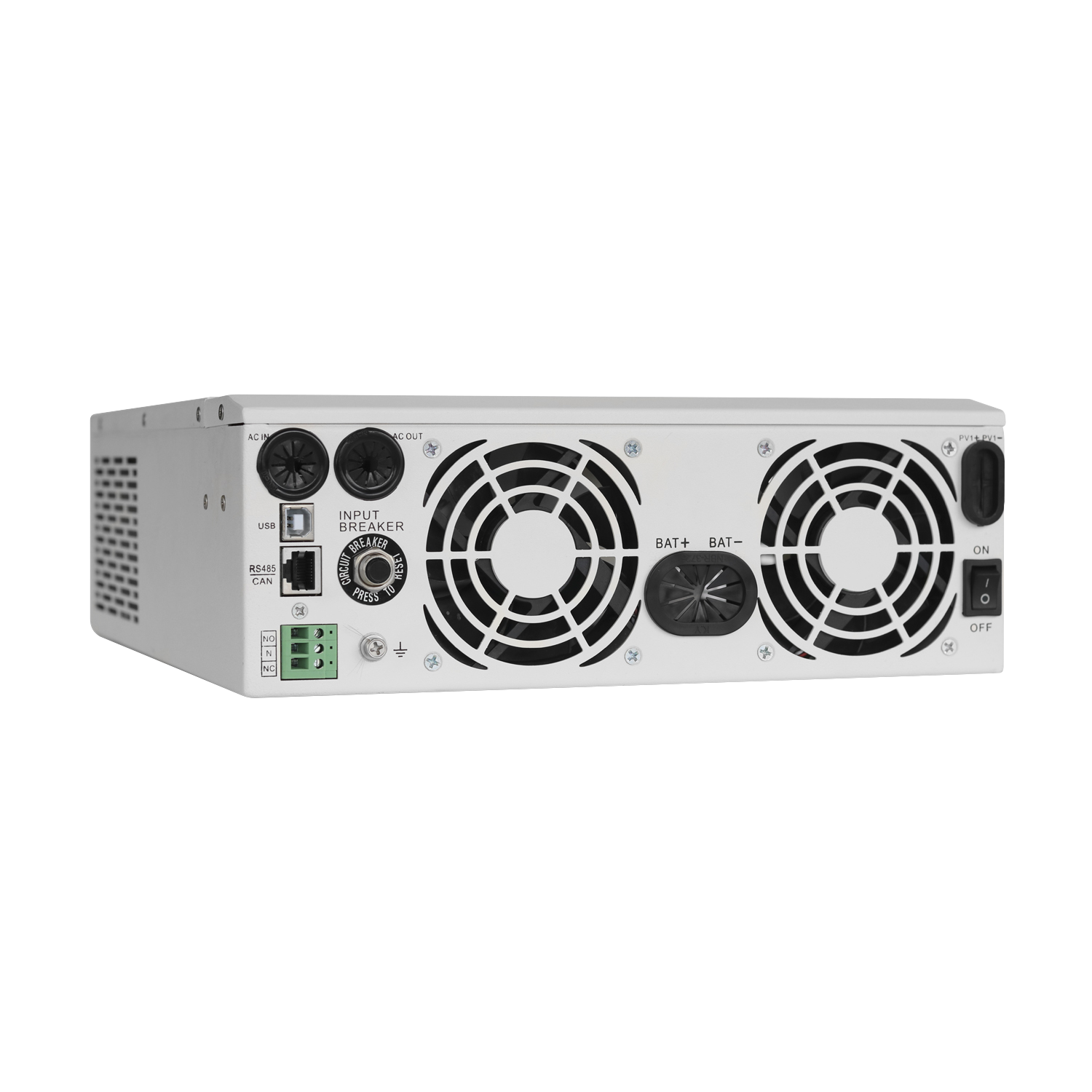

Bottom
Side2
Alternate Text

3KW 24V HighVoltage Inverter

3KW High Voltage Off-Grid Hybrid Solar Inverter, Lithium Battery/GEL/AGM Compatible

Model: HF2430S60-H; 24V Battery Input; 80A MPPT Charging Current; 500V Open Circuit Voltage

  • Alternate Text

    ● Rated Output Power: 3300W

  • Alternate Text

    ● Rated Battery Voltage: 24VDC

  • Alternate Text

    ● Max.MPPT Charging Current: 80A

  • Alternate Text

    ● Max.PV Array Power: 4000W

Download User Manauel Buy Now



All In One Solar Charge Inverter

MODELHF2430S60-100
INVERTER OUTPUT
Rated Output Power3300W
Max.Peak Power6000VA
Rated Output Voltage230Vac(L/N/PE single phase)
Load Capacity of Motors
2HP
Rated AC Frequency50Hz/60Hz
WaveformPure Sine Wave
Switch time10ms

BATTERY
Battery TypeLi-ion/Lead-Acid/User Defined
Rated Battery Voltage24Vdc
Voltage Range20-33Vdc
Max.MPPT Charging Current80A
Max. Mains/Generator Charging Current80A
Max.Hybrid Charging Current80A

PV INPUT
Num. of MPPT Trackers1
Max. PV Array Power4000W
Max. Input Current13A
Max.Voltage of Open Circuit
500Vdc
MPPT Voltage Range120-450Vdc
MAINS/GENERGATOR INPUT
Input Voltage RangeUPS:170-280Vac  APL:90-280Vac
Frequency Range50Hz/60Hz
Bypass Overload Current30A
EFFICIENCY
MPPT Tracking Efficiency99.9%
Max.Battery Inverter Efficiency92%
GENERAL
Dimensions378*280*103mm
Weight6.9kg
Protection Degree
IP20, Indoor only
Operating Temperature Range-10℃ ~ 55℃
Noise< 60dB
Cooling MethodInternal Fan
Warranty2 years
COMMUNICATION
Embedded InterfacesRS485/CAN/USB/Dry Contact
External Modules (Optinal)
Wifi/GPRS
